VACUUM BLOOD COLLECTION TUBE ASSEMBLY

Vacuum Blood Collection Tube Assembly Machine

A NON-STOP ONE LINE integrated system covering tube sorting and supply, crack inspection, reagent/gel dispensing, drying, vision inspection, vacuum capping, labeling, and tray packaging.

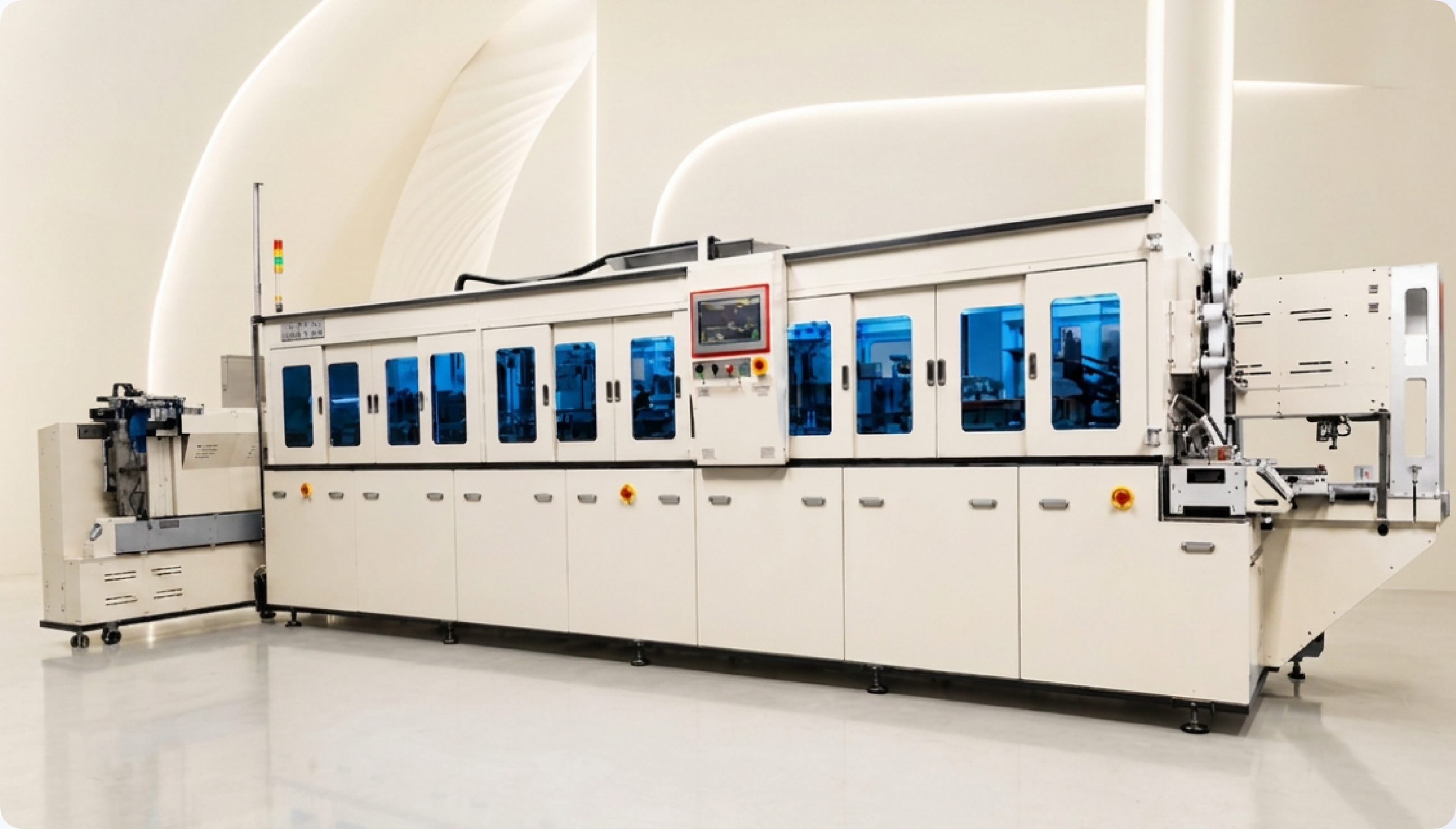

Full view of vacuum blood collection tube assembly equipment VACUUM BLOOD COLLECTION TUBE ASSEMBLY
This equipment supplies standardized tubes to process trays, dispenses and sprays additives such as gel and reagents, and produces vacuum blood collection tubes through processes including tube cap assembly inside a vacuum chamber.

PRODUCT & TECHNOLOGY OVERVIEW

Vacuum Blood Collection Tube Automation Equipment

01 Product / Technology Overview

Automatic Raw Material Supply

Automatically supplies raw and subsidiary materials required for each process according to the production purpose, with precision modules and automatic control technology organically linking each process.

02 Application

Vacuum Blood Collection Tube Production Automation

Automated production of vacuum blood collection tubes for accurate blood collection, storage, transport, and testing required in various clinical examinations.

03 Application Field

Reliable Quality Production

Applies drive concepts and precision control technology to automation equipment manufacturing for reliable quality production based on quantitative and constant-volume standards.

EQUIPMENT LAYOUT

Equipment Layout

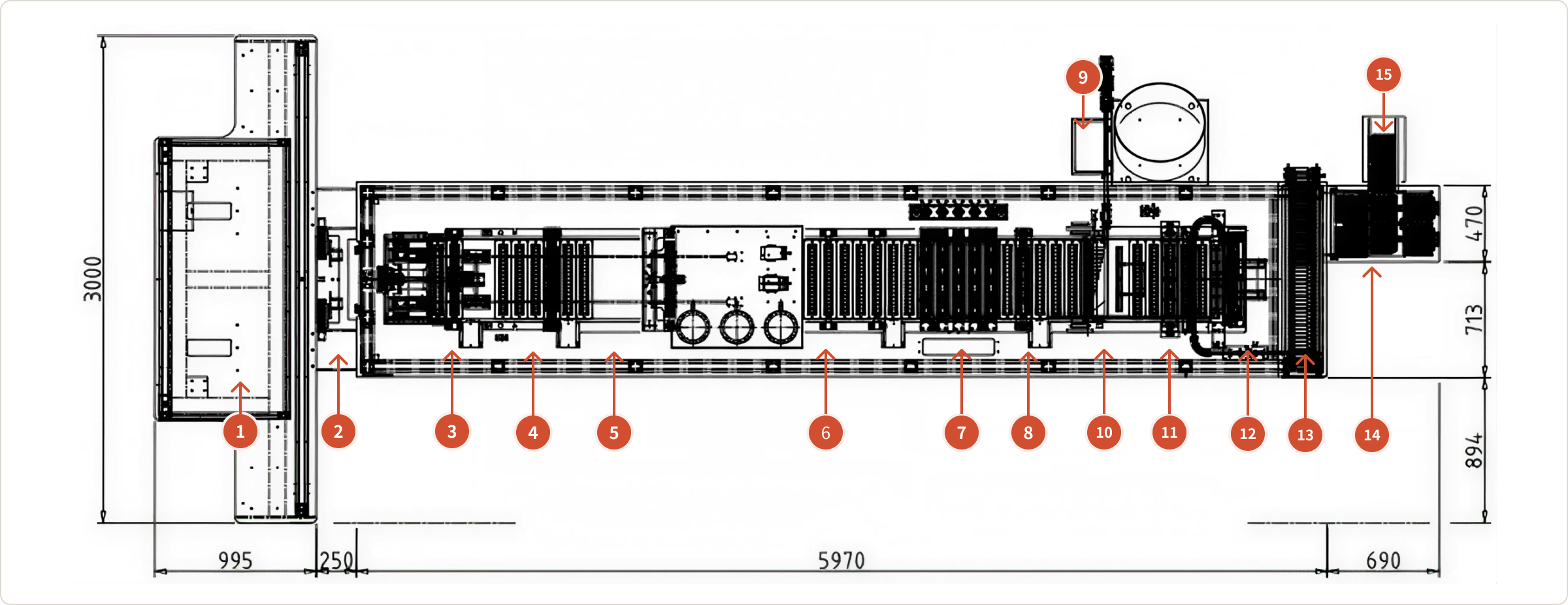

Equipment layout of the vacuum blood collection tube assembly machine with positions from 1 to 15

OVERALL   8,000 × 3,000 mm    ·    HEIGHT   1,930 mm    ·    WEIGHT   4,000 kg

NO.    /    PART NAMENO.    /    PART NAME
  1. 01TUBE SORTING & SUPPLY PART
  2. 02TUBE HOLDER & RINK PART
  3. 03TUBE CRACK & AIR CLEANER PART
  4. 04GEL DISPENSER PART
  5. 05LIQUID REAGANT DISPENSER PART
  6. 06SPRAY REAGANT DISPENSER PART
  7. 07AIR DRYER PART
  8. 08VISION INSPECTION PART
  1. 09CAP SUPPLY PART
  2. 10CAPPING LOADER PART
  3. 11VACUUM CHAMBER PART
  4. 12ASSEMBLY TUBES EJECTOR PART
  5. 13LABEL PRINTING & TUBE LABELING PART
  6. 14TUBE IN STYROFOAM TRAY PART
  7. 15LOGO PRINTING & EJECTOR

TECHNICAL SPECIFICATIONS

Main Specifications

Scroll horizontally to view the full table.

Vacuum blood collection tube assembly machine specifications by model
No.MODELCONTENTSTUBE SIZEREMARK
1P-VT X2S 12FAEDTA, BCA, GEL, COA, ESR, GLUCOSEΦ13X75㎜, Φ13X100㎜
2P-VT X2M 12FAEDTA, BCA, GEL, COA, ESR, GLUCOSEΦ13X75㎜, Φ13X100㎜, Φ16X100㎜
3P-VT X3E 20FAEDTA, HEPARIN, BCA (High-speed)Φ13X75㎜, Φ13X100㎜, Φ16X100㎜
4P-VT X3G 20FADedicated to GEL-SSTΦ13X75㎜, Φ13X100㎜, Φ16X100㎜
5P-VT X3F 20FACOA, ESR, GLUCOSE (Flexible)Φ13X75㎜

*Model naming: X2S (2nd-generation Single), X2M (2nd-generation Multi)

**Model naming: X3E (3rd-generation Express), X3G (3rd-generation GEL), X3F (3rd-generation Filling)

Equipment Size (L × W × H)
8,000 × 3,000 × 1,930 mm
Power Supply
4P 380V / 50~60Hz
Production Capacity
12,000 ~ 20,000pcs/hr
Operators
1–2 people / line

PROCESS FLOW

NON-STOP ONE LINE

Process flow chart based on CLSI international manufacturing standards

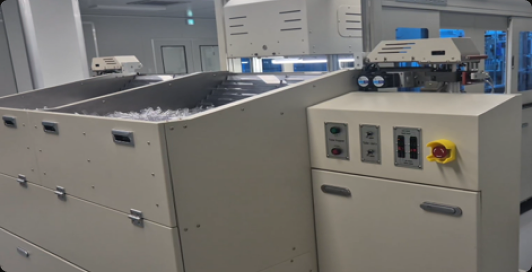

  1. Tube Sorting & Supply
    01Tube Sorting & Supply

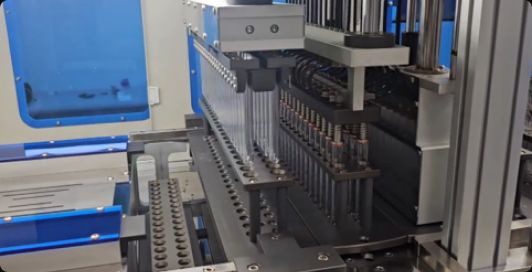

  2. Automatic Tube Loading
    02Automatic Tube Loading

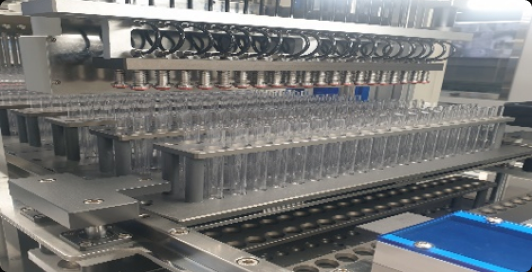

  3. Tube Crack Inspection
    03Tube Crack Inspection

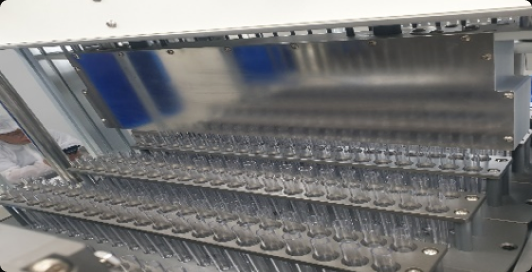

  4. Tube Cleaning
    04Tube Cleaning

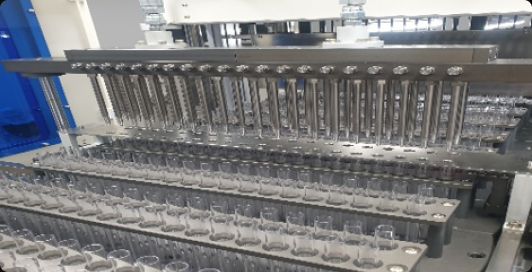

  5. Serum Separator Gel Filling
    05Serum Separator Gel Filling

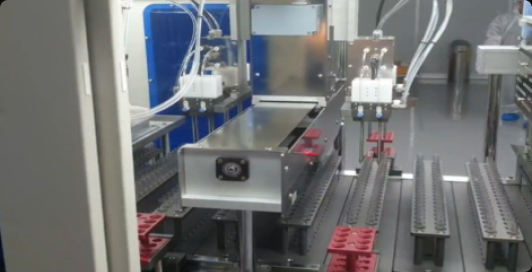

  6. Micro Reagent Dispensing
    06Micro Reagent Dispensing

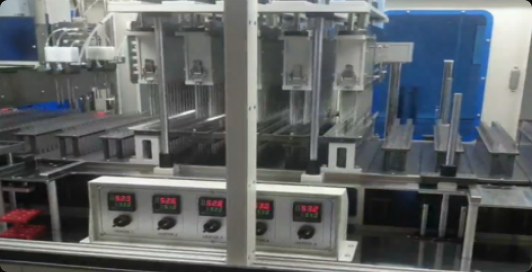

  7. Reagent Drying
    07Reagent Drying

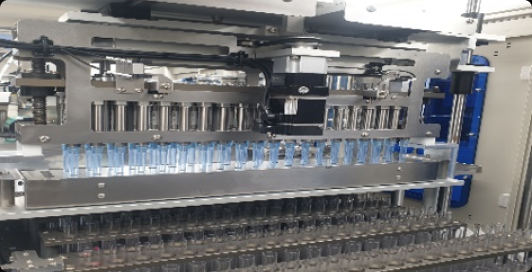

  8. Liquid Reagent Filling
    08Liquid Reagent Filling

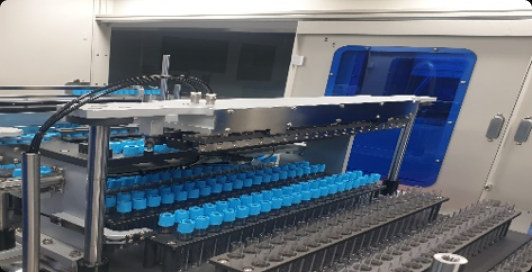

  9. Cap Supply
    09Cap Supply

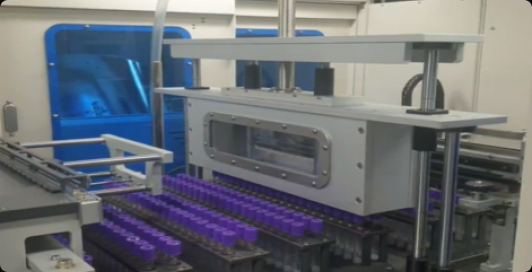

  10. Tube Vacuum Process
    10Tube Vacuum Process

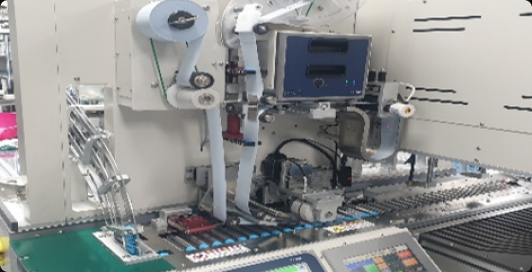

  11. Ejection & Labeling
    11Ejection & Labeling

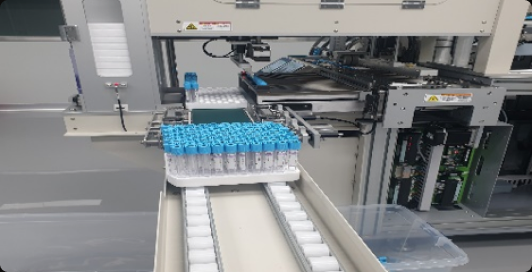

  12. Packaging & Shipment
    12Packaging & Shipment

Manufacturing processes comply with the international standards of CLSI (Clinical and Laboratory Standards Institute).

FEATURES

Production Competitiveness Built by Integrated Inline Processing

Integrated Inline System for All Processes

NON-STOP ONE LINE system from tube supply to labeling and packaging

Medical·Semiconductor Technology Convergence Based on Patented Technology

Secures Quantitativeness and Reproducibility by Complying with CLSI Quality Standards

Cost Reduction and Price Competitiveness with 1–2 Operators per Line

Low-Noise Design

Reduces equipment noise for long operating hours and supports a comfortable production line environment.

Easy Operation for Non-Skilled Operators with Item-Specific Production Recipes
