Integrated Inline System for All Processes
From plastic/rubber cap supply to assembly, inspection, and discharge
BUSINESS AREA

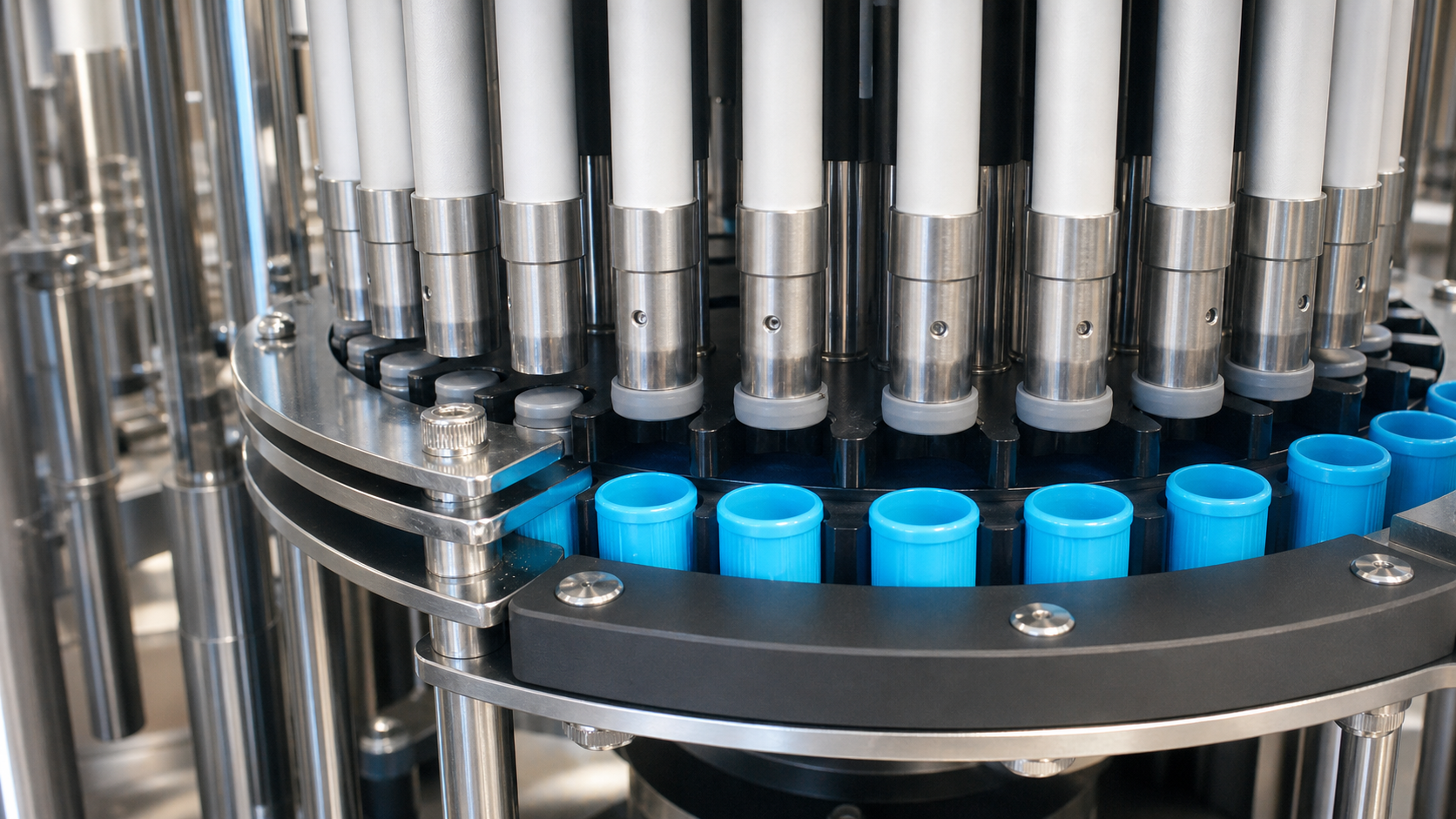

Vacuum Blood Collection Tube Cap Assembly Machine
Vacuum Blood Collection Tube Cap Assembly SystemVACUUM BLOOD COLLECTION TUBE CAP ASSEMBLY

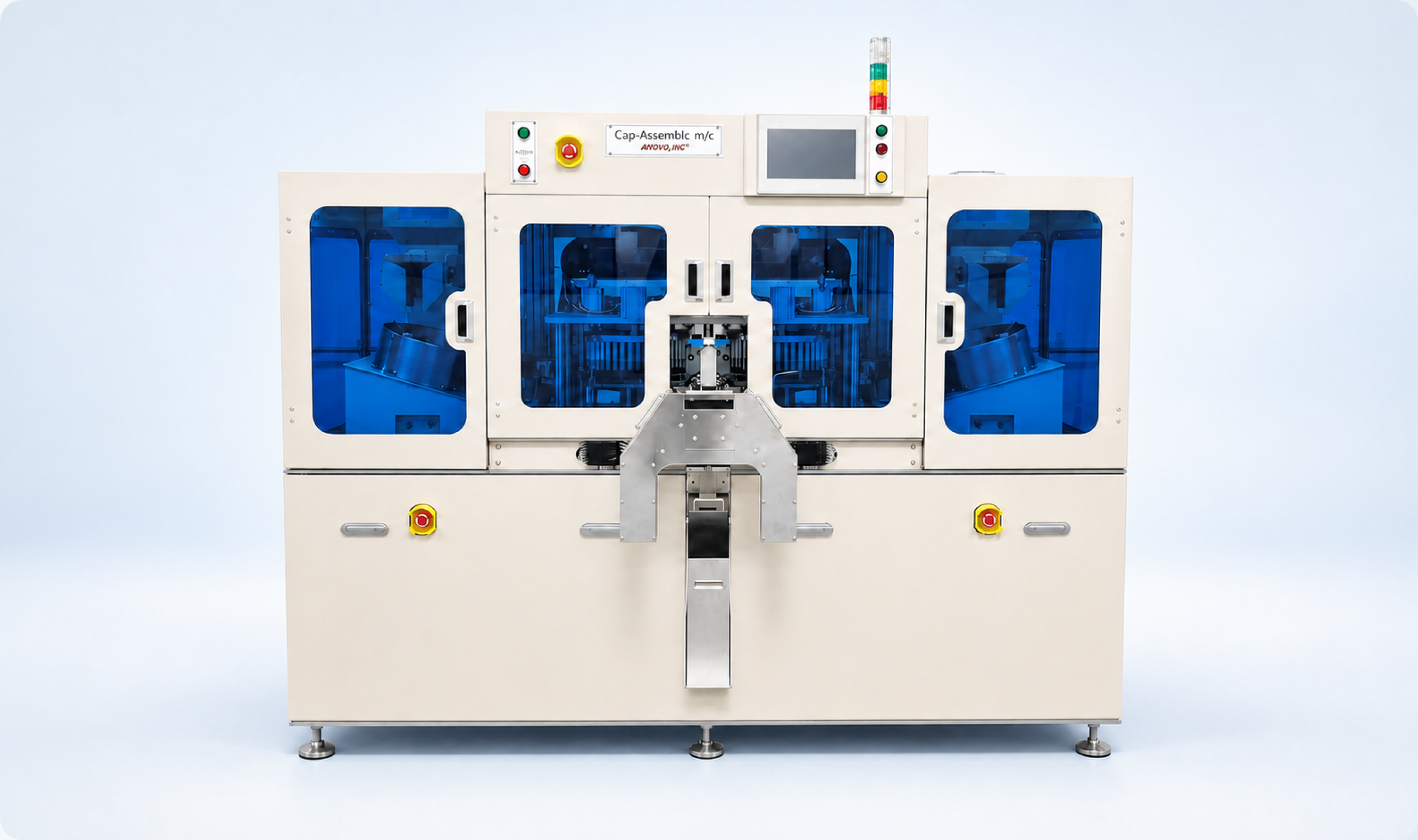

Vacuum Blood Collection Tube Cap Assembly Machine

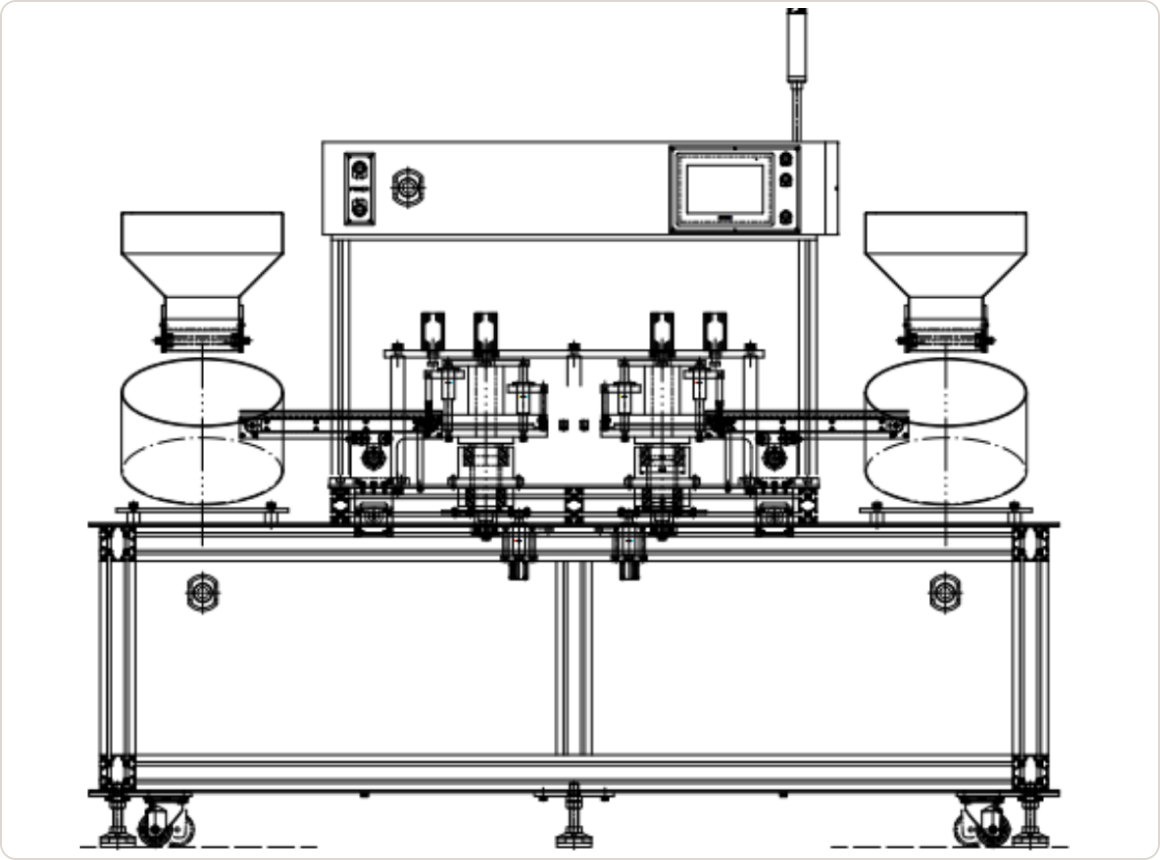

VACUUM BLOOD COLLECTION TUBE CAP ASSEMBLYEQUIPMENT LAYOUT

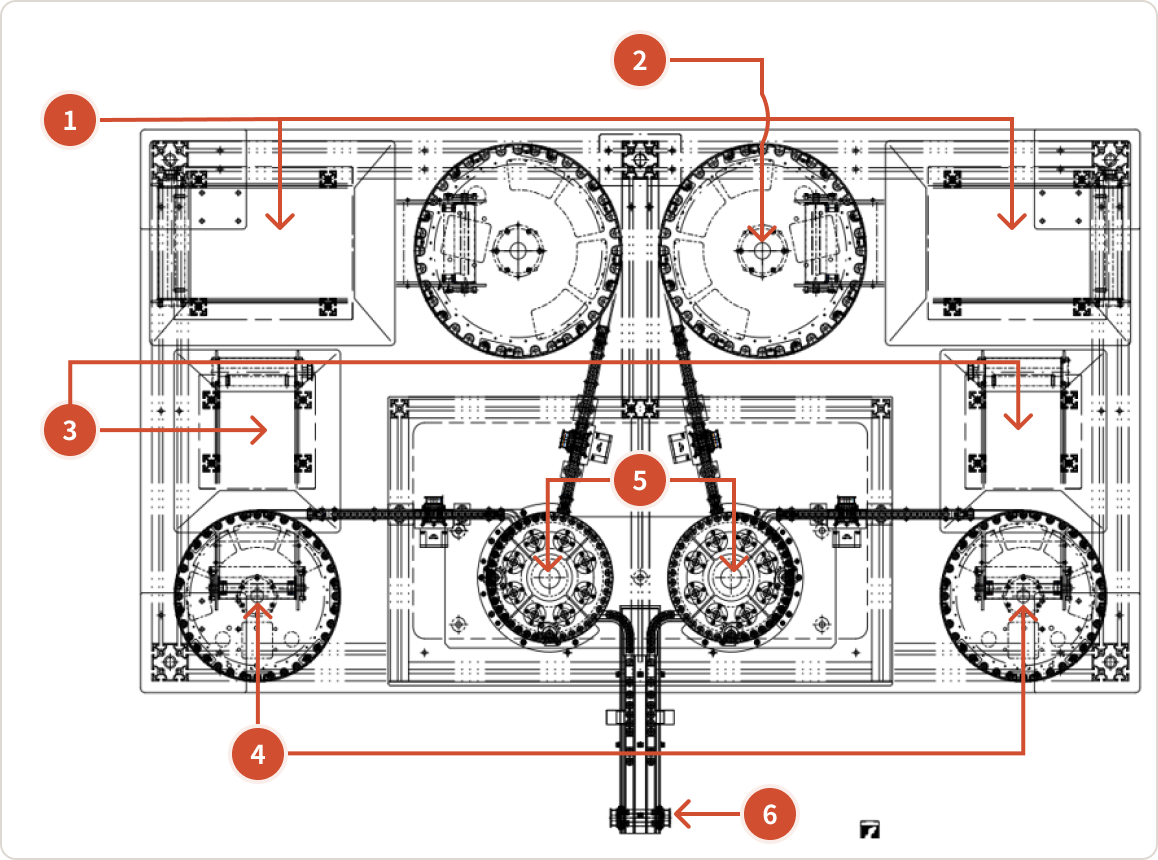

Equipment Layout
NO. / PART NAMENO. / PART NAME
01PLASTIC CAP(P-CAP) HOPPER PART
02PLASTIC CAP(P-CAP) DISK FEEDER PART
03RUBBER CAP(R-CAP) HOPPER PART
04RUBBER CAP(R-CAP) DISK FEEDER PART
05CAP ASSEMBLY(P-CAP + R-CAP) PART
06CAP OUTPUT PART
TECHNICAL SPECIFICATIONS
Main Specifications
Scroll horizontally to view the full table.
| No. | MODEL | CONTENTS | TUBE SIZE | REMARK |
|---|---|---|---|---|
| 1 | P-VTC X2S 12FA | Dedicated to Φ13 or Φ16 | Φ13X75㎜, Φ13X100㎜, Φ16X100㎜ | |
| 2 | P-VTC X3D 20FA | Dedicated to Φ13 or Φ16 | Φ13X75㎜, Φ13X100㎜, Φ16X100㎜ |
*Model naming: X2S (2nd-generation Single), X3D (3rd-generation Double)
- Equipment Size
- 2,400 × 2,100 × 1,800 mm
- Power Supply
- 4P 380V / 50~60Hz
- Production Capacity
- 12,000 ~ 20,000pcs/hr
- Assembly Method
- ROTARY
PROCESS FLOW
CAP ASSEMBLY LINE

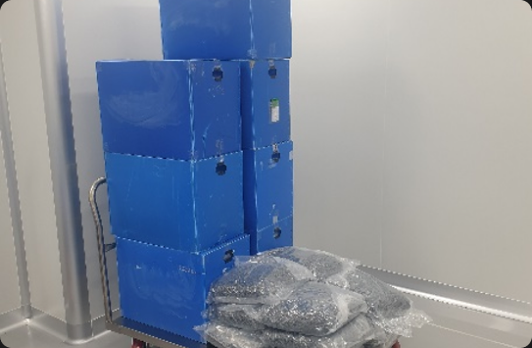

01Raw Material Preparation

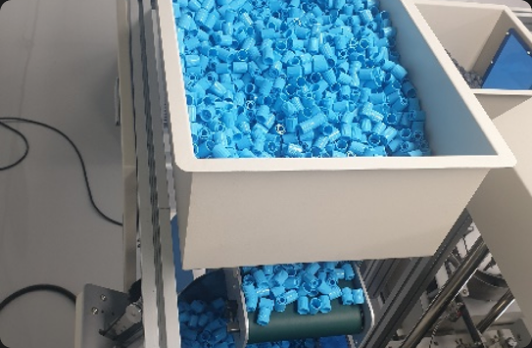

02Plastic Cap Hopper Loading

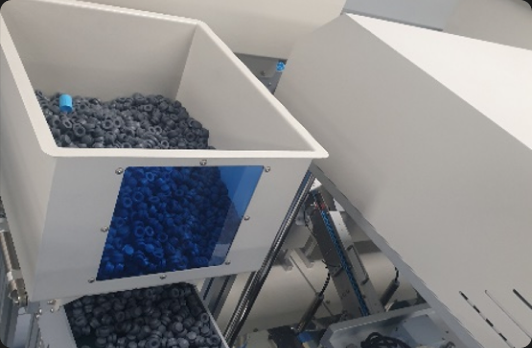

03Rubber Cap Hopper Loading

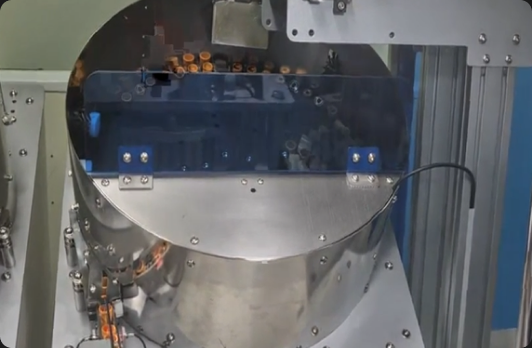

04Plastic Cap Feeder

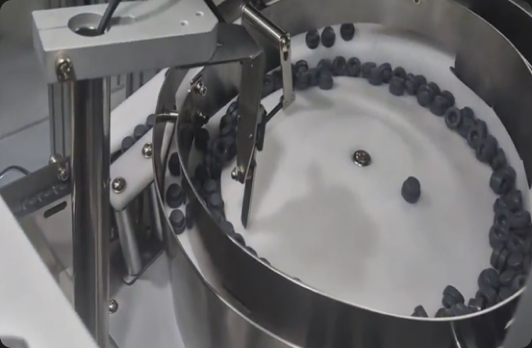

05Rubber Cap Feeder

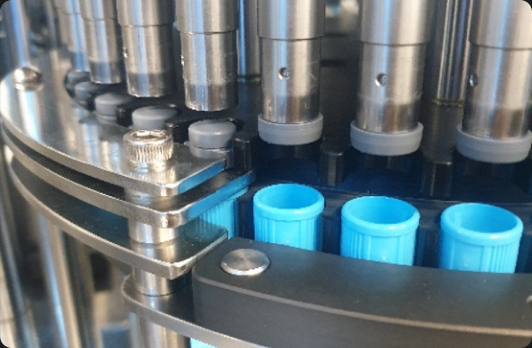

06Cap Assembly

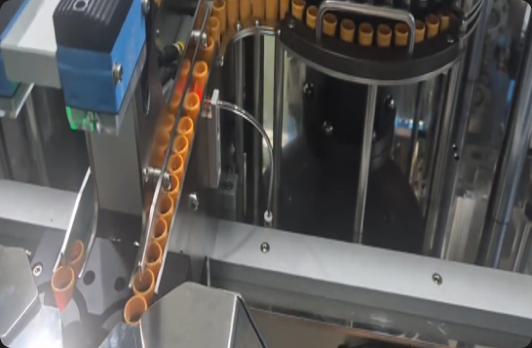

07Vision Inspection

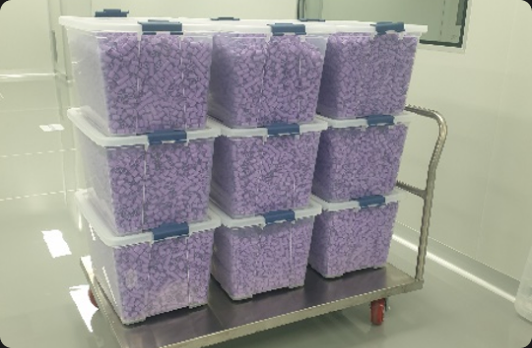

08Packaging & Loading
Manufacturing processes comply with the international standards of CLSI (Clinical and Laboratory Standards Institute).
FEATURES
Cap Assembly Features
Assembly Status Inspection by Vision System
Automatic defective product discharge
Low-Noise Design
Reduces equipment noise for long operating hours and supports a comfortable production line.
PRODUCT VIDEO
See the Cap Assembly Equipment in Video
PRODUCT CATALOG
Vacuum Blood Collection Tube Cap Assembly Machine Catalog
Request the catalog for delivery by email after review.
