PLANNING SUN’s
MODULES

Process modules in existing production lines can be improved or modified. Planning Sun configures tube sorting, precise gel filling, and anticoagulant spray processes to fit each production environment.

3 CORE
MODULES

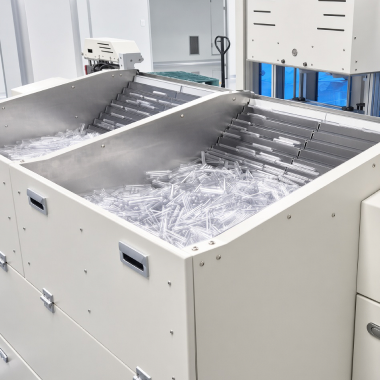

Tube Sorting Module

PET tubes supplied in bulk are aligned through the step feeder and rotation process.

Gel Filling Module

A fixed amount of gel is filled through the ram pump, metering valve, and gel dispenser.

Microliter Spray Module

Anticoagulant is coated on the inner tube wall through microliter control and compressed-air mist spraying.

TUBE SORTING MODULE

Tube Sorting Module

When PET tubes are supplied in bulk to the hopper, aligned tubes are supplied through the step feeder and rotation process.Process modules in existing production lines can be improved or modified.

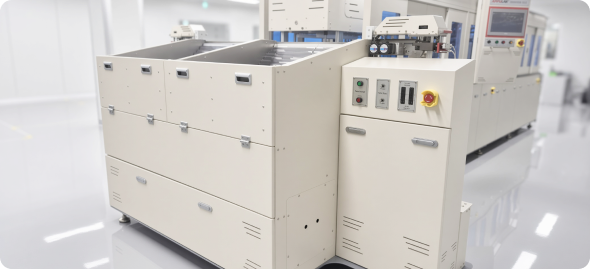

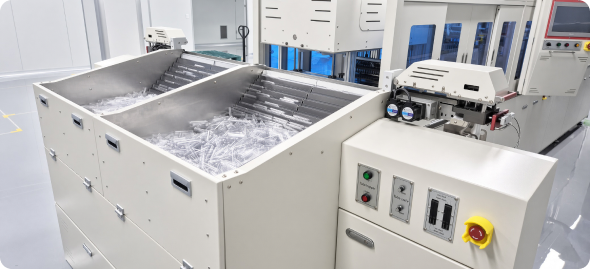

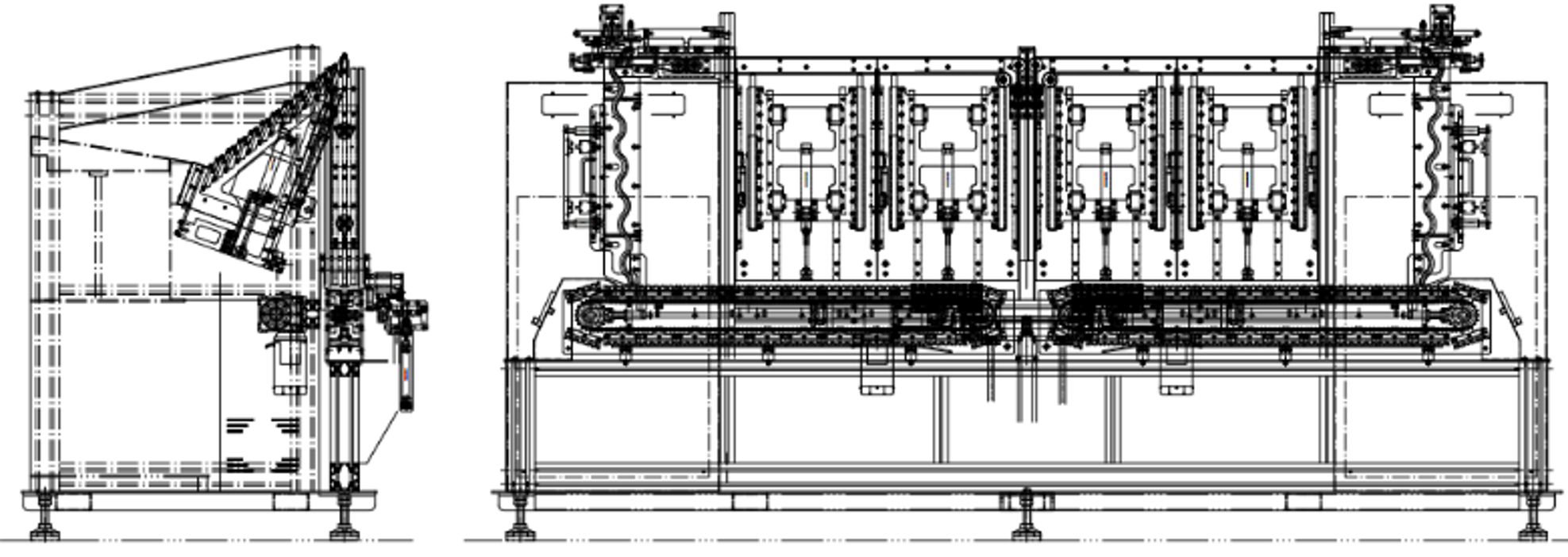

EQUIPMENT PHOTOS

PROCESS FLOW

01
PET Tube Bulk Supply
Supply PET tubes in bulk to the hopper
02
Step Feeder Transfer
Transfer tubes step by step through the step feeder
03
Rotation Alignment
Align tube orientation through rotation
04
Aligned Tube Supply
Supply aligned tubes to the next process

CORE CONFIGURATION

Bulk Supply

Supplies PET tubes in bulk to the hopper.

STEP FEEDER

Transfers tubes step by step.

ROTATION

Aligns tube orientation and supplies tubes to the next process.

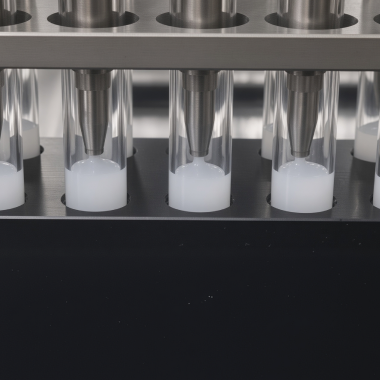

GEL FILLING MODULE

Gel Filling Module

Serum-separation gel is supplied by a ram pump through a metering valve to the gel dispenser, and a fixed amount is filled into the tube by adjusting the nozzle pin of the manifold block.Process modules in existing production lines can be improved or modified.

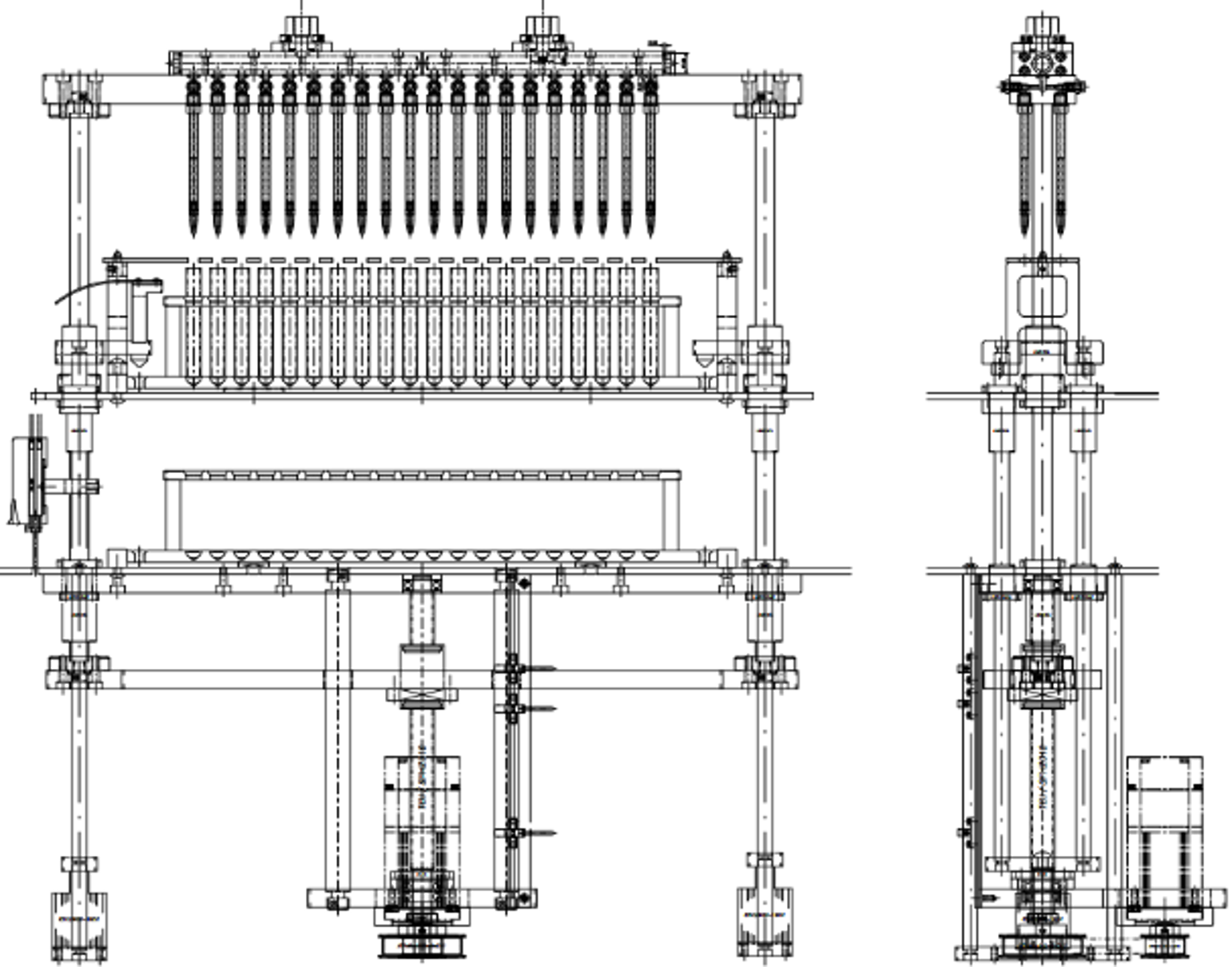

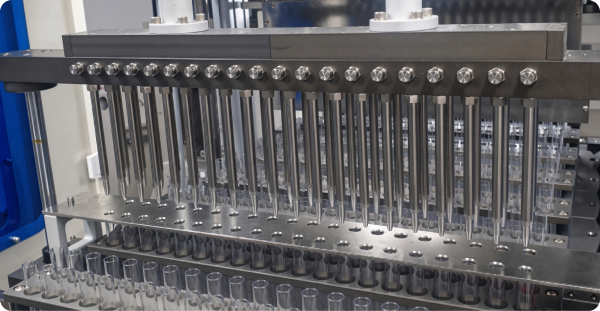

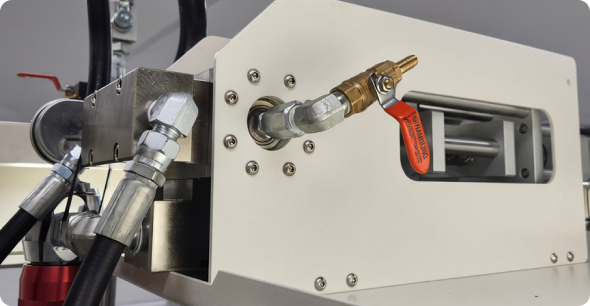

EQUIPMENT PHOTOS

PROCESS FLOW

01
Ram Pump Supply
Supply serum-separation gel by ram pump
02
Metering Valve Transfer
Control gel supply amount through a metering valve
03
Gel Dispenser
Connect the filling process through the gel dispenser
04
Precise Tube Filling
Fill a fixed amount after adjusting the nozzle pin

CORE CONFIGURATION

RAM PUMP

Supplies serum-separation gel.

Metering Valve

Controls gel supply to a fixed quantity.

NOZZLE PIN

Adjusts the nozzle pin of the manifold block.

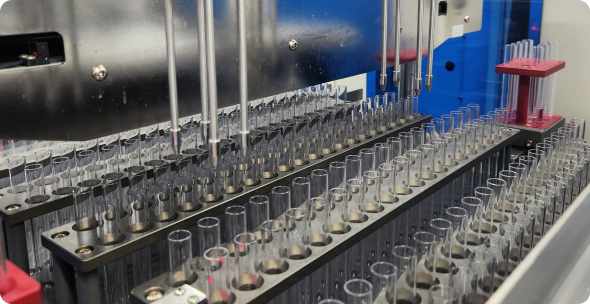

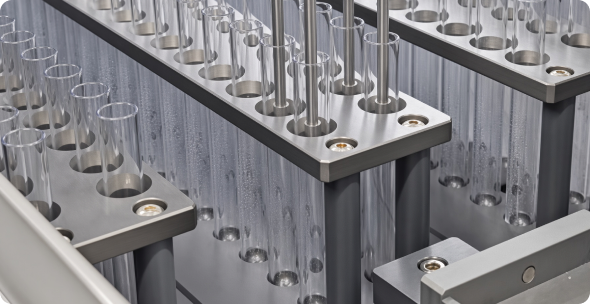

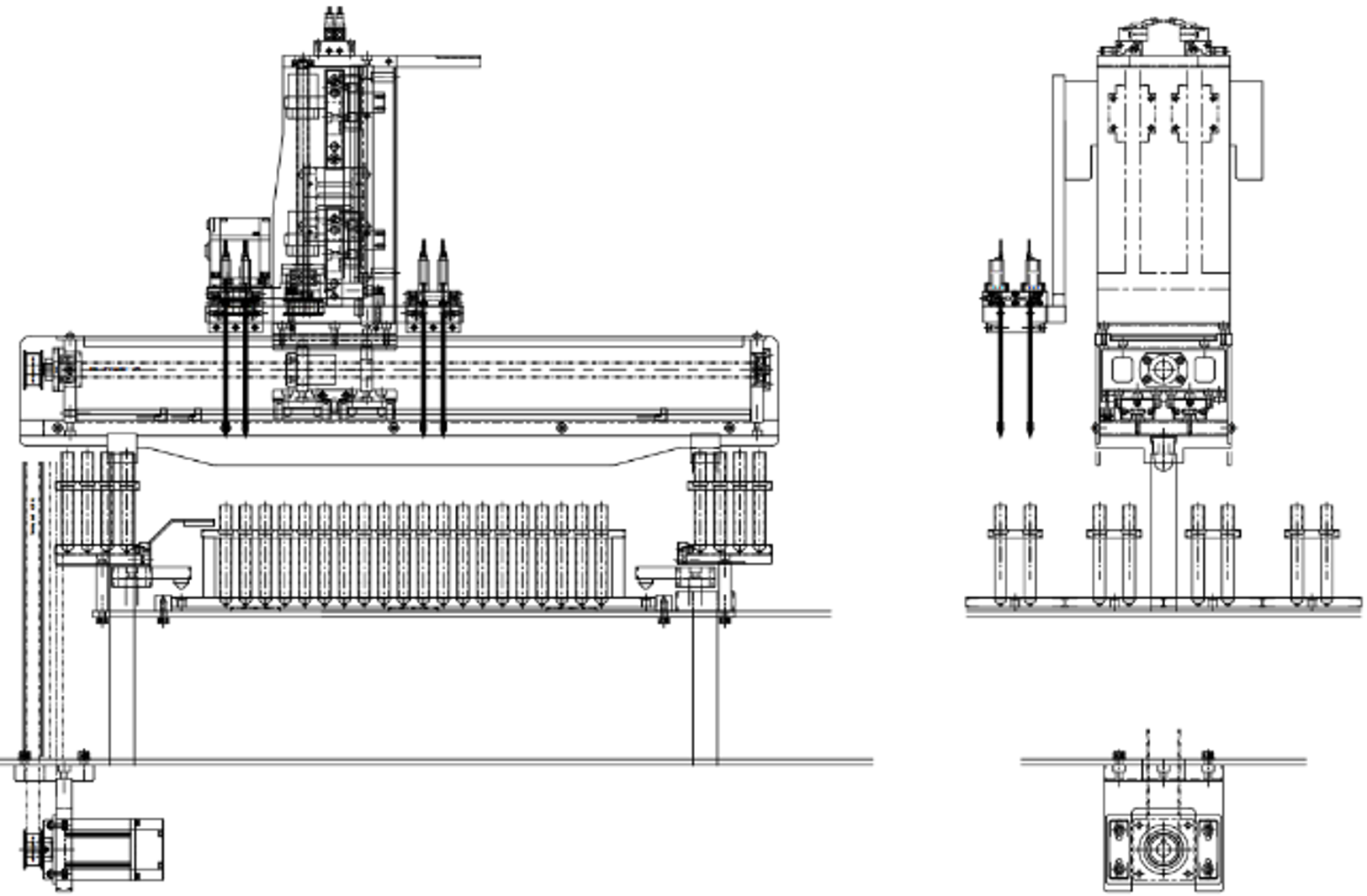

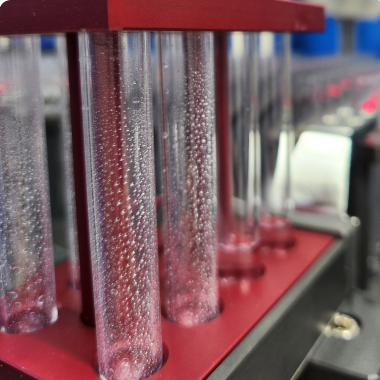

MICROLITER SPRAY MODULE

Microliter Spray Module

This process controls and dispenses anticoagulant in microliter units by item, draws the same amount into each nozzle, and coats the inner tube wall with an accurate amount through compressed-air mist spraying.Process modules in existing production lines can be improved or modified.
